Factory direct Customized battery lithium iron 12v 7ah
Invest in power with the Mighty 12V 7ah Lithium Iron Phosphate Battery. The XD will take your deep cycle battery experience to a whole new horizon. Manufactured with the highest quality components and the customers safety in mind, this battery contains a battery management system (BMS). BMS provides all kinds of protection for the battery and customer, equipped with Over charge and short circuit protection. Weighing only 7.70 lbs. and being a direct drop in replacement for its sister sealed lead acid and Gel batteries which weigh a hefty 5.00 lbs. Lighter, stronger and longer life span with 2500 cycles makes this the ideal battery for all your Deep Cycle applications such as, Solar / wind energy systems, Off Grid systems, RV, Camping, Backup power systems and much more.
ATTENTION: We can design any 12V LiFePO4 with the same SLA case size to replace old SLA battery!
Parameter:
| NO. | Item | General Parameter | Remark |
| 1 | Model | 32650 3.2V | Single |
| 2 | Standard capacity(0.2C5A) | 7AH | |
| 3 | Rated voltage | 12.8V | 3.20V(Work voltage:3.20V) |
| 4 | Max.Charge voltage | 14.6V | 3.65V(Single Ave. charge Voltage) |
| 5 | Cut-off voltage | 10V | 2.50V(Single Ave. Discharge Voltage) |
| 6 | Standard charge current | 3.5A/4A/10A | 0.5C |
| 7 | charging Time | About2.5h-3h | |
| 8 | Max Continuous discharge current | 66A/ | 10C |
| 9 | Peak discharge current | 200A | 1C10seconds |

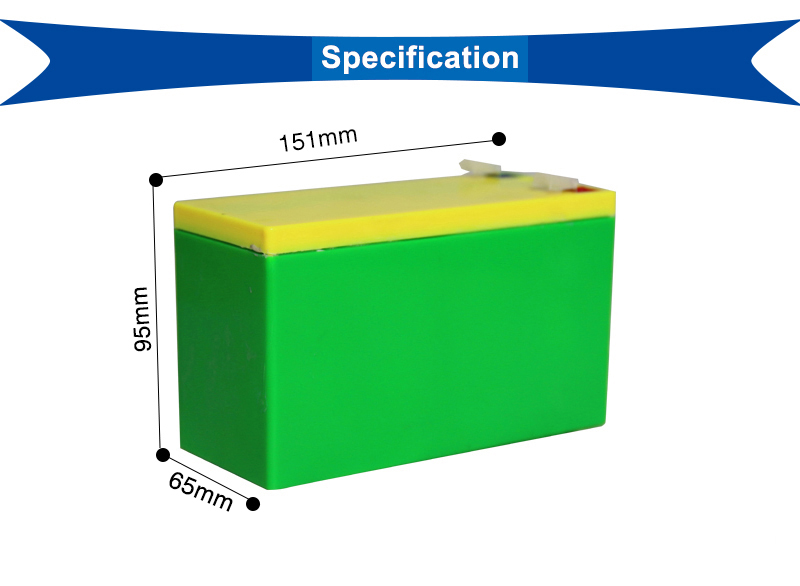

| 10 | Battery dimension | 150 x 65 x 95mm | |
| 11 | Total weight(Approx.) | About 0.8kg | |
| 12 | (Max, at 1000Hz.)Impedance(Max, at 1000Hz.) | ≤ 20mΩ | |
| 13 | (CC/CV)
Charge method (CC/CV) | Standard | 0℃~45℃ |
| discharge | -20℃~45℃ |
| storage | -20℃~45℃ |
Applications:
1. Golf trolleys, Golf carts,
2. UPS backup
3. Fire alarm and security systems
4. Telecommunication equipment
5. Electric equipment and telemeter equipment
6. Light equipment, dc 12v led lights
7. Wireless lawn movers vacuum cleaner and washing machine
8. Toys and consumer electronics
9. Solar systems 12v
10.Portable power tools measuring and medical equipment
11.Portable video camera portable personal computer
12.Garden lighting
13.Sound systems
